Fire Control & Sensor Integration

Exploring how electro-optical sensing, control electronics and operator workstations come together within an integrated fire-control capability.

RESEARCH DOMAINSENSING / CONTROL / INTEGRATION
CH01
ELECTRO-OPTICAL SENSING

Electro-Optical Sensor Head

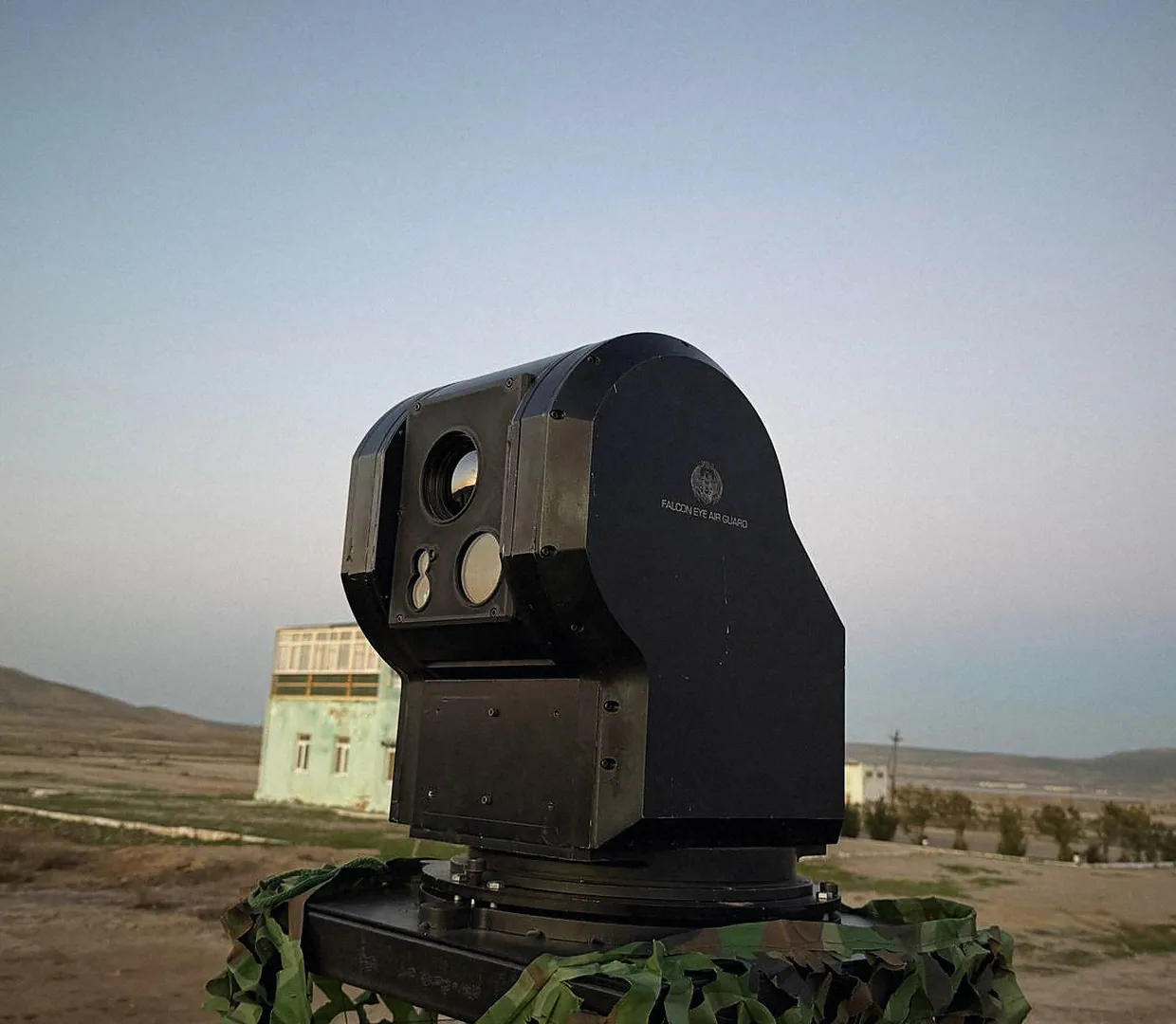

Electro-optical sensor-head assembly photographed outdoors.CH01 / SENSOR HEAD / FIELD VIEW

The sensor head represents the system’s electro-optical sensing element. This image introduces the sensing layer within a wider fire-control architecture.

CH02
CONTROL ELECTRONICS

Embedded Control Electronics

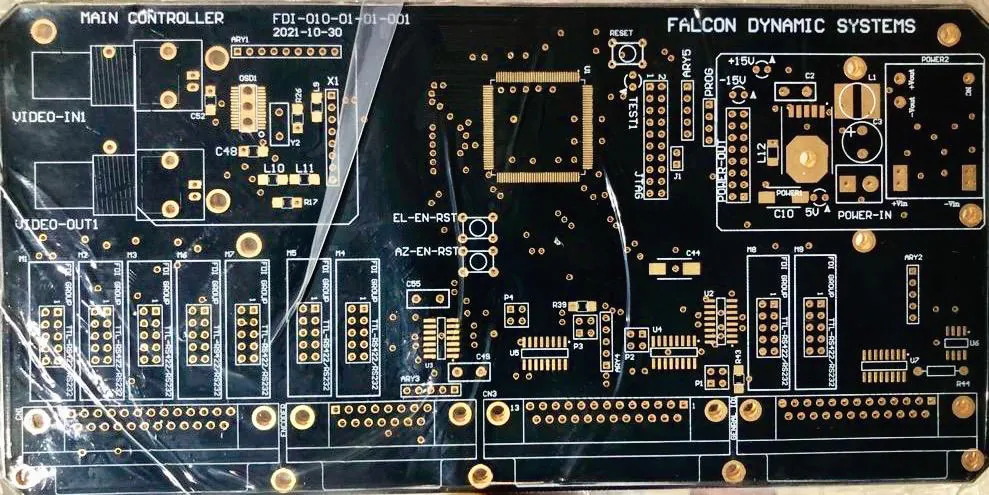

Electronic controller board with mounted components.CH02 / CONTROLLER BOARD

Control electronics are part of connecting sensing equipment, processing hardware and system interfaces. The image shows a controller board without implying unverified specifications.

CH03
OPERATOR INTERFACE

Operator & Command Workstation

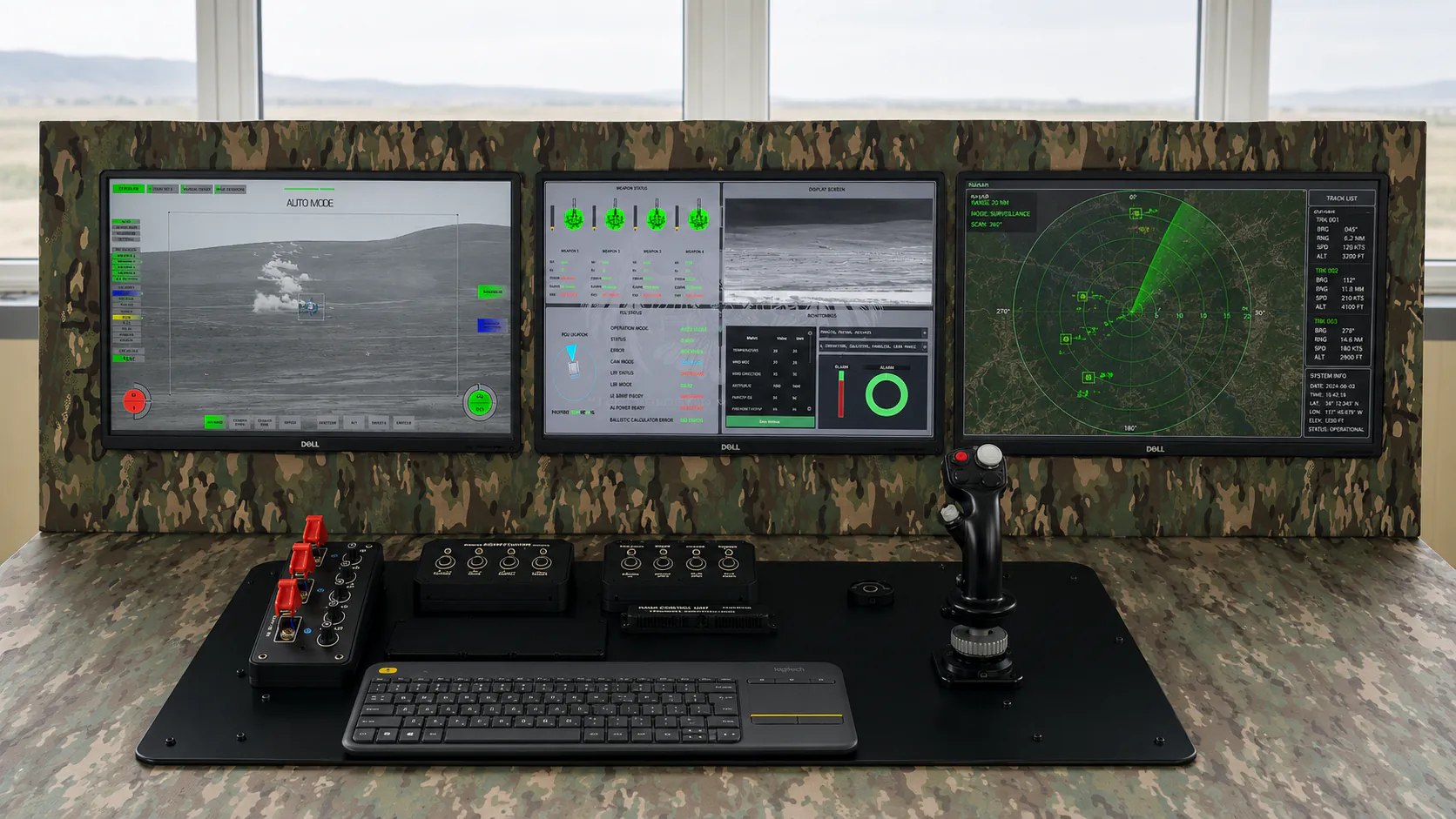

Operator console with multiple displays showing radar-related information.CH03 / MULTI-SCREEN CONSOLE

Operator workstations present system information through a human-facing interface to support operator awareness and control.

R&D / SYSTEM VIEW

Integration Sequence

CONCEPTUAL SYSTEM FLOW
  1. 01Sensor input
  2. 02System processing
  3. 03Operator interface
